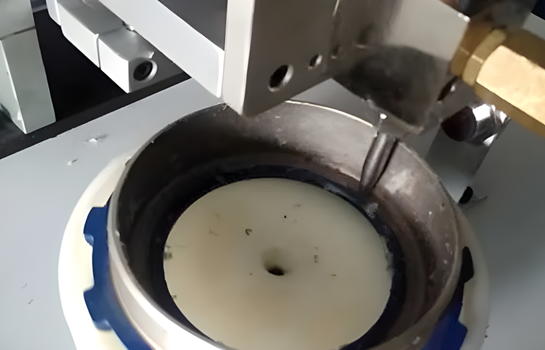

single head with rotary table dispensing machine
Features
- Positive displacement with fix metering unit.
- Adaptable to wind range of external fluid reservoir.
- Volumetric short control, Cycle status indication.
- Mixing ratio (Fixed ratio): As per material specifications.
- Low voltage, electronically controlled pneumatic operation.
- Fully interlocked microprocessor
- -controlled operation.
- Mixing head design to homogeneously mix & dispensed the two components.
- Automatic two-way positive dispensing flow directional valves for maintaining accurate ratio.
- Fixed ratios available over a 1:1 to 100:10 over range provide precise ratio control – ratios can be changed with interchangeable cylinders.
- Standard 4 position field adjustable volume allows each of 4 different size shots to be dispensed with ±2% repeatability.
- Built in external valve interface allows simple operation of remote valving (any type weather 2 way)
- Full Volume purge/prime system allow purging or priming without disturbing priest volumes.
Specifications
- Ratio Variation from 100:10 to 100:100.
- Tank Size: Standard & Custom as per requirement.
- Shot Size: 7 grams to 70 grams & 0.5 to 5 grams.
- Flow Rate
- Variable with shot size.
- Weight: 800 kg 9Approx).
- Machine Size: 1500mm X 1500 mm X 1500 mm (L x W x H)
Application
- Bonding, sealing, insulating, foaming and coating, casting & under vacuum potting.
- Whether it is automotive electronics, electrical, filter, medical or other industries uses.
- Heat sinks, PCBs, battery systems in hybrid & electrical vehicals, engine manufacturing, power electronics, household appliances, entertainment and electronics (smartphones and tables.)
- Solar panel, wind mills etc.
